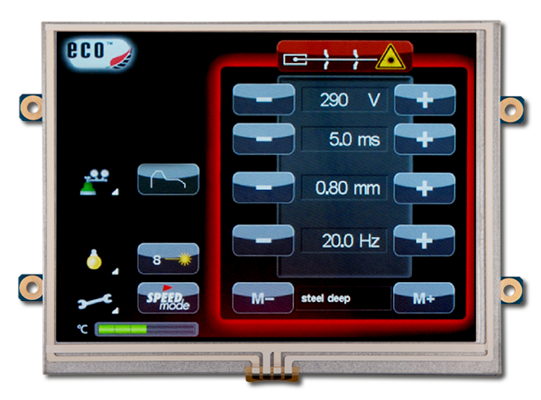

Demmel 5.7″ Industrial 5.7" iLCD JPro Panel with Resistive Touch (Legacy Series)

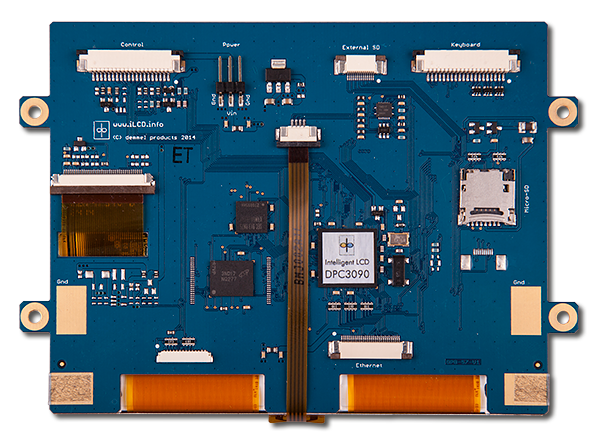

The 5.7″ DPP-x57 is an intelligent LCD that delivers full VGA resolution (640×480) on a 112.9×84.7 mm active area, driven by our fast 32-bit iLCD controller (DPC3090) with 128 MB onboard flash. As the successor to the DPP-CT6448, it remains fully compatible with the previous model in application, dimensions and pin assignment — so upgrading is effortless.

Instead of switching pixels on and off, you control the display with an extensive, easy-to-learn set of high-level commands. Graphics, fonts, text blocks, animations and macros are created and stored in minutes using the free iLCD Manager XE software. For more advanced needs, the panel is also fully programmable in Java: a slim Java VM built into the firmware runs your compiled code, letting the iLCD handle computation or even drive an entire application on its own.

Storage scales with your project. The 128 MB flash holds images, text, fonts and macros, while 8 MB of RAM supports multiple screen contents. Need more? Expand via the onboard MicroSD holder or connect an external standard SD card. The panel also operates in portrait mode.

The TFT display shines at 350 cd/m² with a 500:1 contrast ratio, rendering graphics in full 16-bit color (or 8-bit with an auto-generated 16-bit palette). Animated color GIFs play smoothly and effortlessly, as standard with every iLCD.

Connect and control the display via USB, RS232, RS422/485, I²C or SPI. An optional TCP/IP interface adds networking and high-speed data transfer — ideal for rapidly developing stand-alone applications. Built for industrial use across a −20 to +70 °C range, the DPP-x57 is equally at home indoors or outdoors.

Every kit includes all the hardware and software needed to put the full range of iLCD features to work.

At a glance

• 5.7″ TFT, 640×480 (VGA), 112.9×84.7 mm active area
• 32-bit DPC3090 controller, 128 MB flash + 8 MB RAM
• 350 cd/m² brightness, 500:1 contrast, 16-bit color
• High-level commands + full Java programmability (iLCD Manager XE)
• USB, RS232, RS422/485, I²C, SPI — optional TCP/IP
• MicroSD onboard + external SD expansion, portrait mode
• Industrial −20 to +70 °C, pin-compatible successor to DPP-CT6448

Item# DPP-T57
